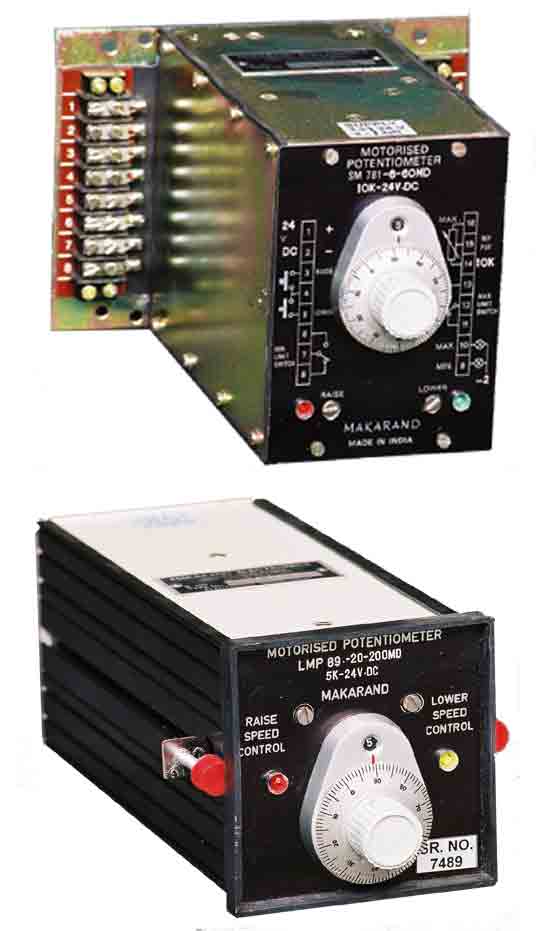

1. Type : SM 781: Wall Mounting
Type With Single Reference
Potentiometer
Type : SM 781 6-60MD 5K 240V AC
A : Time for Full Scan : 6 – 60
i.e. 6 to 60 Seconds (Adjustable)
B : Value of Reference
Potentiometer : 5K i.e. 5 K Ohms
C : Power Input : 240V AC i.e.
Supply Voltage 240 V AC.
2. Type: SM
811 : Wall Mounting Type Tandem Reference
Potentiometer
Type : SM 811
20-200MD 5K 24V DC A & C :
Details same as in Model SM 781.
( 20 –200 : Scan
time 20 to 200 Sec) B : 5 K + 5
K i.e. Values of Reference Potentiometers.
(5K
Ohms 2 Nos ) - Different Values
for reference Potentiometer can be selected
- Maximum 3 Nos. Potentiometers
can be coupled. - Tandem model
available in panel mounting type as well.
3. Type: LMP 89 : Panel Mounting
Type.
Type : LMP 89 6-60MD
10K 110V DC - Size 96 mm X 96 mm
Depth 200 mm to 225 mm. -
Terminals on Rear Panel. -
Cutout Dimensions 91 mm X 91 mm
4.
Special types of Motorised Potentiometer.
a) Reference Potentiometer with
25 W rating (upto 500 Ohms) b)
Input :4- 20 mA Output: 4 – 20 mA.
c) Input : 4 -20 mA Output:
Potentiometers. d) Input :
Potentiometer Output: 4 –20 mA
e) MDZ Type – after any interruption of Power,
the
Potentiometer
will restart from minimum
position.
|
